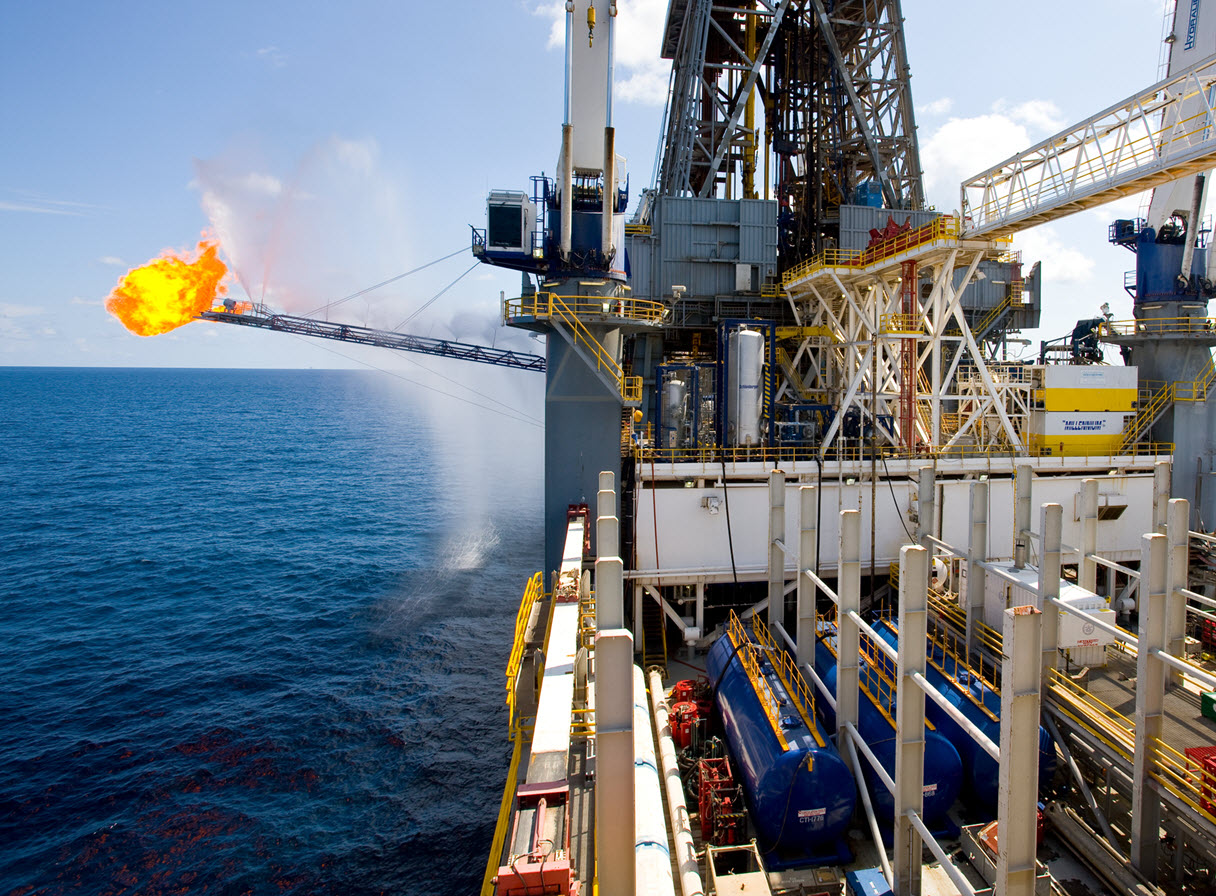

Flaresim is the industry standard flare simulation/design application. Designed by professional engineers, for professional engineers, it models thermal radiation and noise footprints generated by flare systems for offshore platforms, gas plants, refineries and chemical plants, and predicts the temperature of exposed surfaces within range.

Flaresim flare systems design and analysis software is the industry standard and the leading software in the design and evaluation of flare systems for both onshore and offshore applications. It provides accurate modelling of thermal radiation, temperature, and noise footprints of flared fluids generated from chemical processes.

Further, gas dispersion calculations are available to model flammability and toxicity for combustion products, unburnt flared fluids, and pollutants

The application can analyze installations of any complexity, with unlimited multiple flare tips on multiple vertical, horizontal or inclined flare stacks. Users can model pipe flares, sonic flares and liquid burners using a range of algorithms. They can also enter and report data in units of their choice, and can convert data to other units at any time.

Flaresim 2021

Ensuring safety of flaring is an integral part of your production system’s design and operation. Schlumberger helps you increase the accuracy of your safety calculations with Flaresim 2021, which integrates Symmetry Fluid Engine.

Symmetry Fluid Engine allows you to accurately characterize any fluid and consumed with many Schlumberger software products such as Symmetry process software platform, OLGA dynamic multiphase flow simulator, PIPESIM steady-state multiphase flow simulator, and non-Schlumberger products, such as HTRI.

Together in one package, they offer powerful insight that enables you to reduce assumptions and eliminates the need to move information across different platforms. Now, you can switch between different property and thermodynamic packages, so you can achieve the right design the first time.

This comprehensive tool enables tracking greenhouse gas emissions, the use of assist fluids such air or steam to achieve smokeless operation, modelling of thermal shields, and rigorous sizing and rating capabilities for knockout and seal drums.

As your operational parameters change, the ability to consider those changes within your full system is crucial to ensure operational cost reduction and mitigating risks.

The new and enhanced Flaresim capabilities provide an improved user experience and a more intuitive graphical interface, reduce capex and opex, and, most importantly, identify key hazards before they occur.

Flaresim software is part of the Symmetry Flare Workspace, which provides capabilities to simulate the entire flare system in steady state and dynamics, including pressure relief valve (PRV) sizing and hydraulic analysis of the flare network.

Flaresim

3D flame-shape analysis

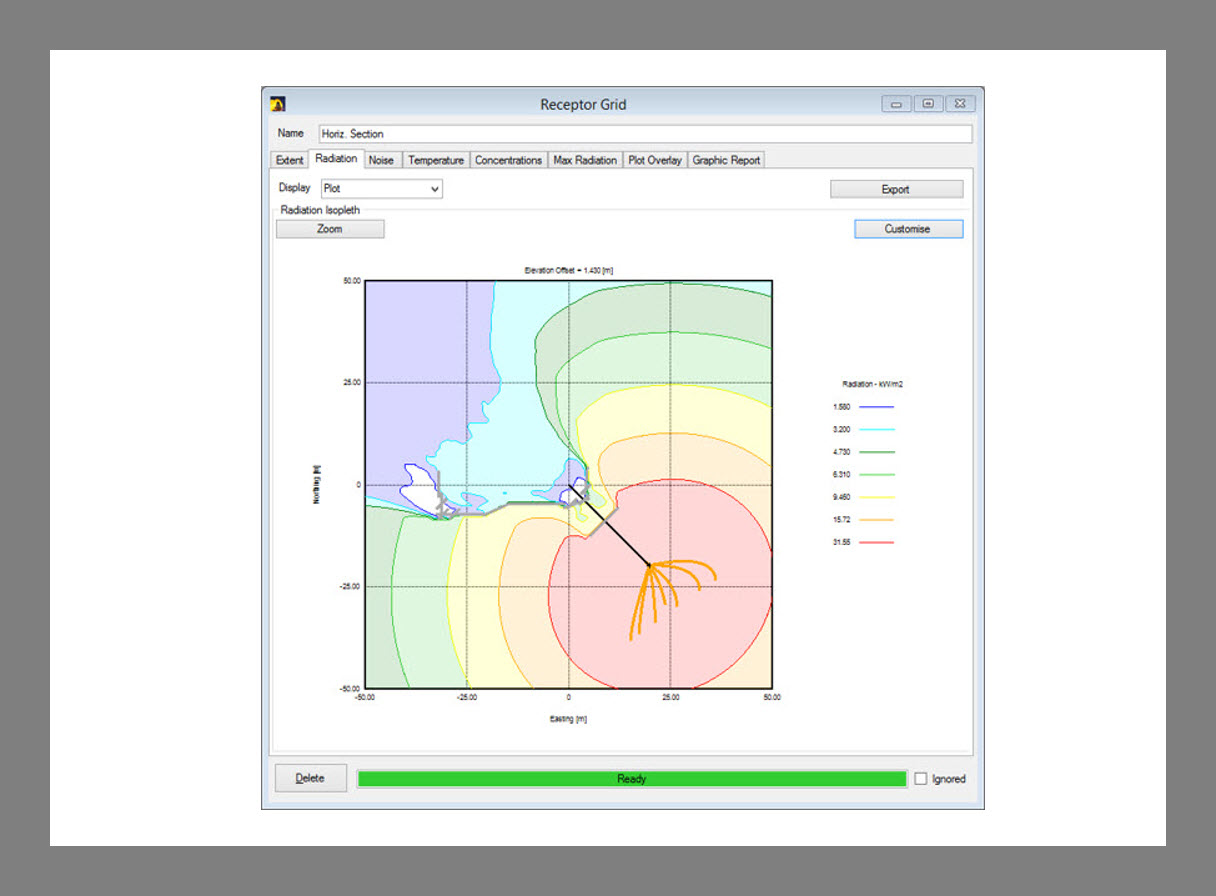

Flaresim provides full 3D flame-shape analysis with complete flexibility in the location and orientation of multiple stacks, and rapid evaluation of flare systems under different wind speeds and directions. Shield options can be included.

Working from the opposite perspective, Flaresim allows you to design stack or boom length to meet specific radiation, noise or surface-temperature limits at defined receptor points.

Flaresim

Gas dispersion models

Flaresim includes gas dispersion models for both jet dispersion of flammable gases close to the stack and Gaussian dispersion of pollutants at longer distances.

The output from Flaresim is highly customizable, and you can select either summary or detailed output. Flaresim has a user-friendly interface and incorporates context-sensitive help at every stage for user guidance.

Flaresim

Software your trust, available in the cloud

Flaresim software is now available within the DELFI Petrotechnical Suite along with OLGA simulator, Symmetry platform, and PIPESIM simulator to enable a complete end-to-end design, analysis, and optimization of your full production system.

  • Identify debottlenecking locations and underperforming unit operations from the well, network, facilities, and refinery to the HSE system.

  • Maintain unified fluid properties across the process and refinery system.

  • Reduce the need to move data from across different working platforms and departments.

  • Decrease IT infrastructure investment and maintenance costs.



Enhance accuracy of your full system design

Our new Symmetry Fluid Engine (previously VMGThermo) provides access to an extensive pure component library and thermodynamic property packages. Symmetry Fluid Engine allows you to accurately characterize any fluid and use the property estimations for flare safety calculations in Flaresim software.

Quick onboarding for your engineers

You don’t need to start everything from scratch. Ready-made examples are now available within the shortcut menu to ensure that your new engineers are adequately and quickly trained. This saves your engineers time and empower them with more analysis tools.

Flaresim

Improve safety through integrated design and analysis

Flaresim software is now available within Symmetry platform, enabling you to evaluate an entire flare system, including scenario management, relief valve sizing, network hydraulic calculations, and safety analysis in one environment. This integration eliminates assumptions, increases accuracy, mitigates risks, and reduces opex.

Top New Features - Latest release

Flaresim Protect Assets

Protect your assets

Identify locations where flammability levels can reach the lower limit value needed to cause ignition and burning

Flaresim - Protect Employees

Protect your employees

Quickly quantify values of radiation, noise, temperature, and concentration at key locations.

Flaresim - Monitoring qualifying emissions

Protect your environment

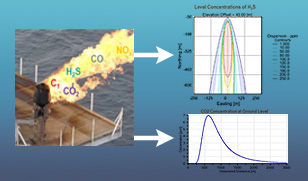

Leverage flexibility in monitoring and quantifying emissions.

Training Courses



We are able to provide a range of flare system training courses from narrowly focused introductions to the use of Flaresim to broader based courses that consider the modelling of the full flare system including load generation calculations and flare header design.

Courses can be arranged in-house and we also run public access courses for introducing engineers to Flaresim.

Please contact us for details.

Technical Details

Flaresim comes with full documentation, including a complete description of the program methods and a number of tutorials containing worked examples.

For more information on licensing and software requirements, click read more.

Flaresim is validated to run under Windows 7, 8 and 10. It should also run on earlier versions such as Vista and XP but is not tested for this. Under 64-bit versions of Windows it runs as a 32-bit application. A PC on which you wish to run Flaresim should have at least 1Gb of RAM, and should also have a USB port for connection of the Flaresim security key.

Flaresim is also available in a network version where usage of the software is controlled centrally through a licence server using the Safenet Sentinel RMS system. Licensing is based on the number of simultaneous users of the program. ‘Commuter licensing’ – where licences can be checked out to PCs away from the network – is also supported.
